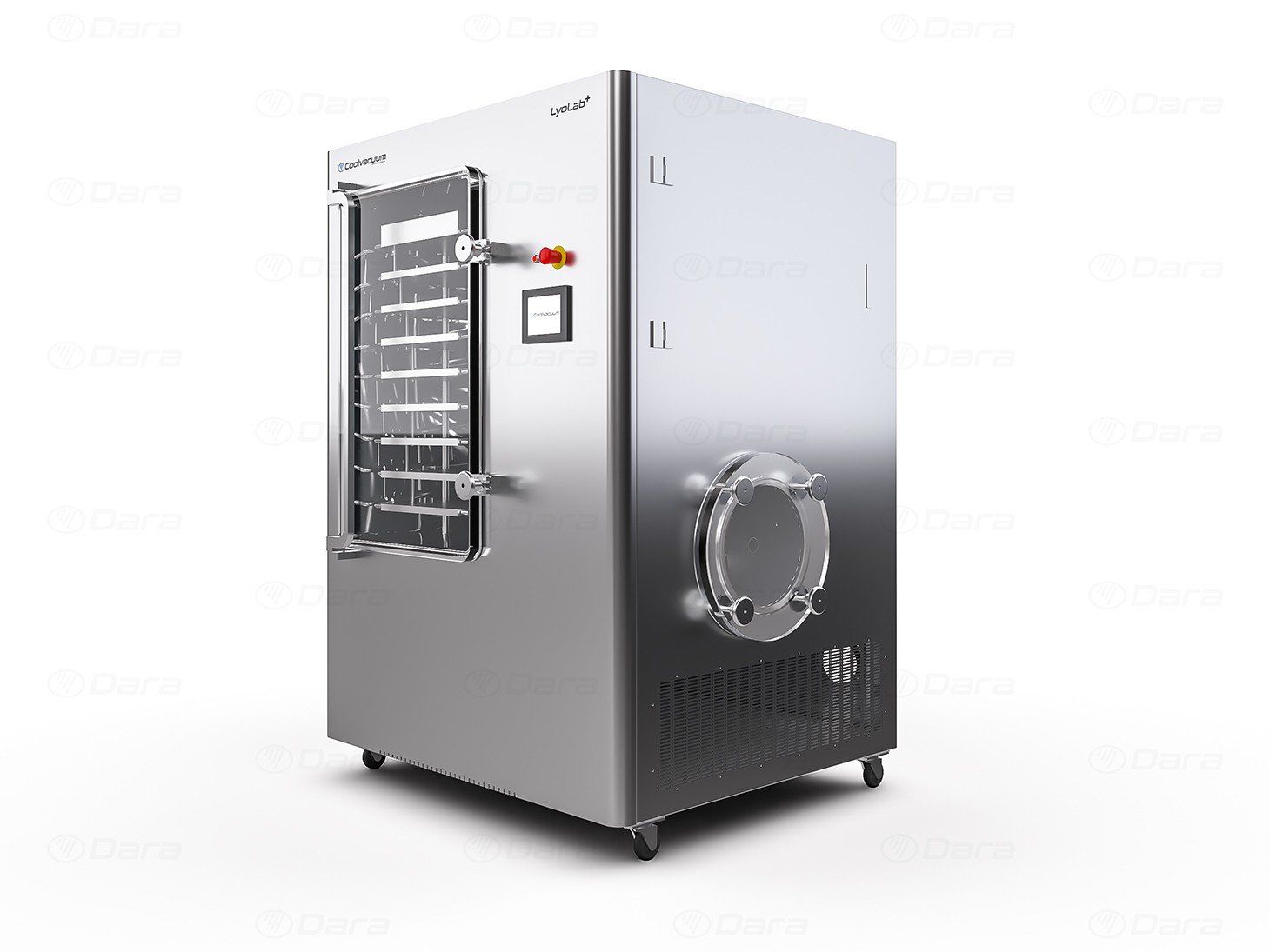

LyoLab+

LyoLab+

Freeze Dryer

Ready for scale up / Accuracy and control, fully tailor-made / Ice condenser capacity up to 40 kg / Output up to 8,800 2R vials.

Main features

  • Chamber materials: AISI 316L stainless steel.
  • Ice condenser temperature: -85˚C.
  • Ice condenser capacity: 40 kg (20 kg / 24 hours).
  • Overall dimensions (W x D x H): 1,300 x 980 x 2,000 mm.
  • Shelves temperature range: -60˚C to +80˚C.
  • Heating power supply: 3,000 W.
  • Vacuum pump output: 30 m3/h.
  • Weight: 1,400 / 1,500 kg.


Options

  • Hot gas defrosting system.
  • Coolvacuum Trend software for batch / cycle data logging.
  • SCADA software to process production data acquisition in accordance with FDA 21CFR part 11.
  • Remote connection.
  • Vacuum control for cycle optimization.
  • Chamber / condenser isolation valve.
  • Organic solvent condenser.
  • Gas discharge filter for the vacuum pump.
  • Infinite condenser for continuous freeze drying.
