Alpha Port

ABC Transfer® Alpha Part

Four safety interlocks in full compliance with EU GMP annex 1

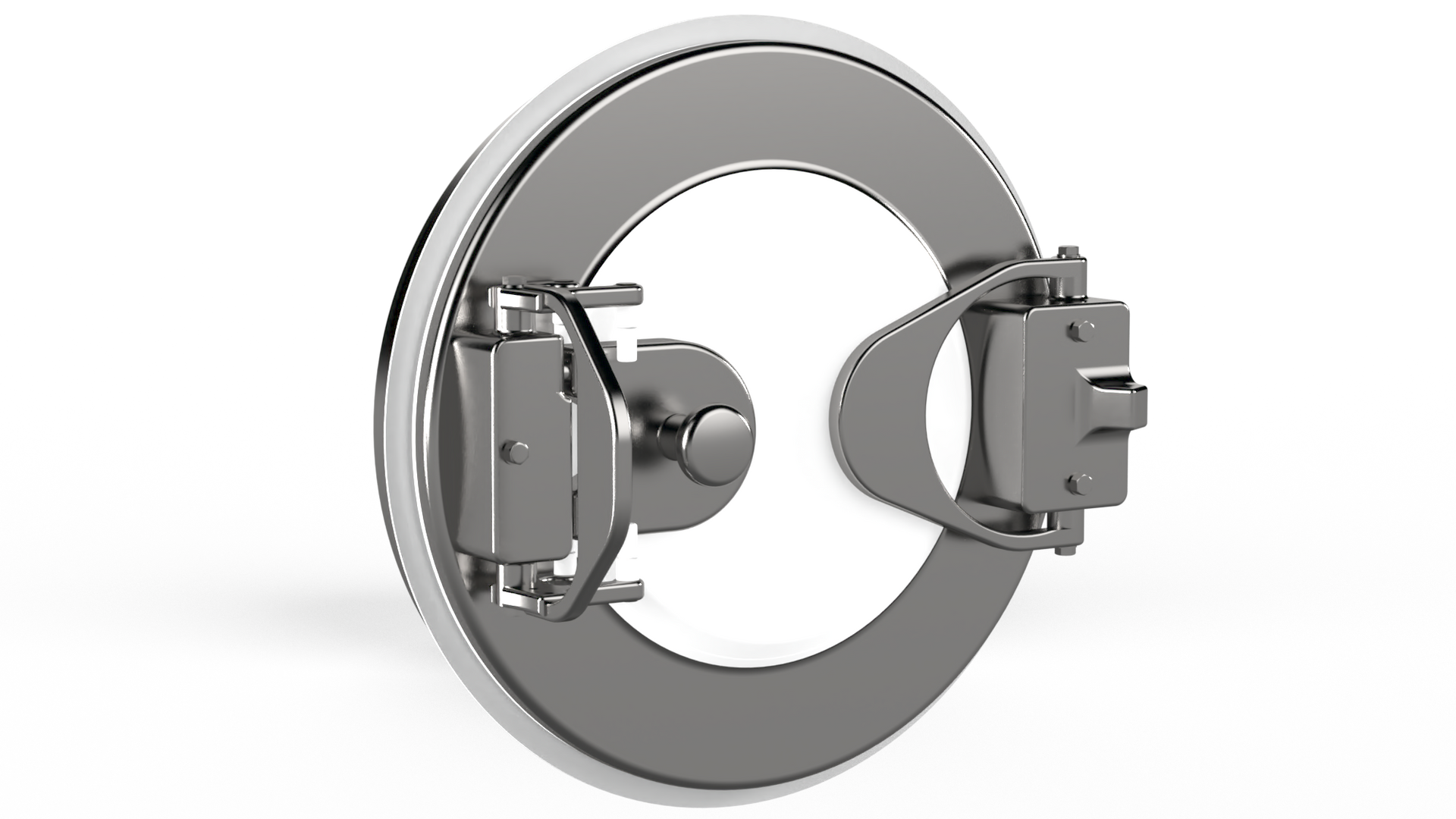

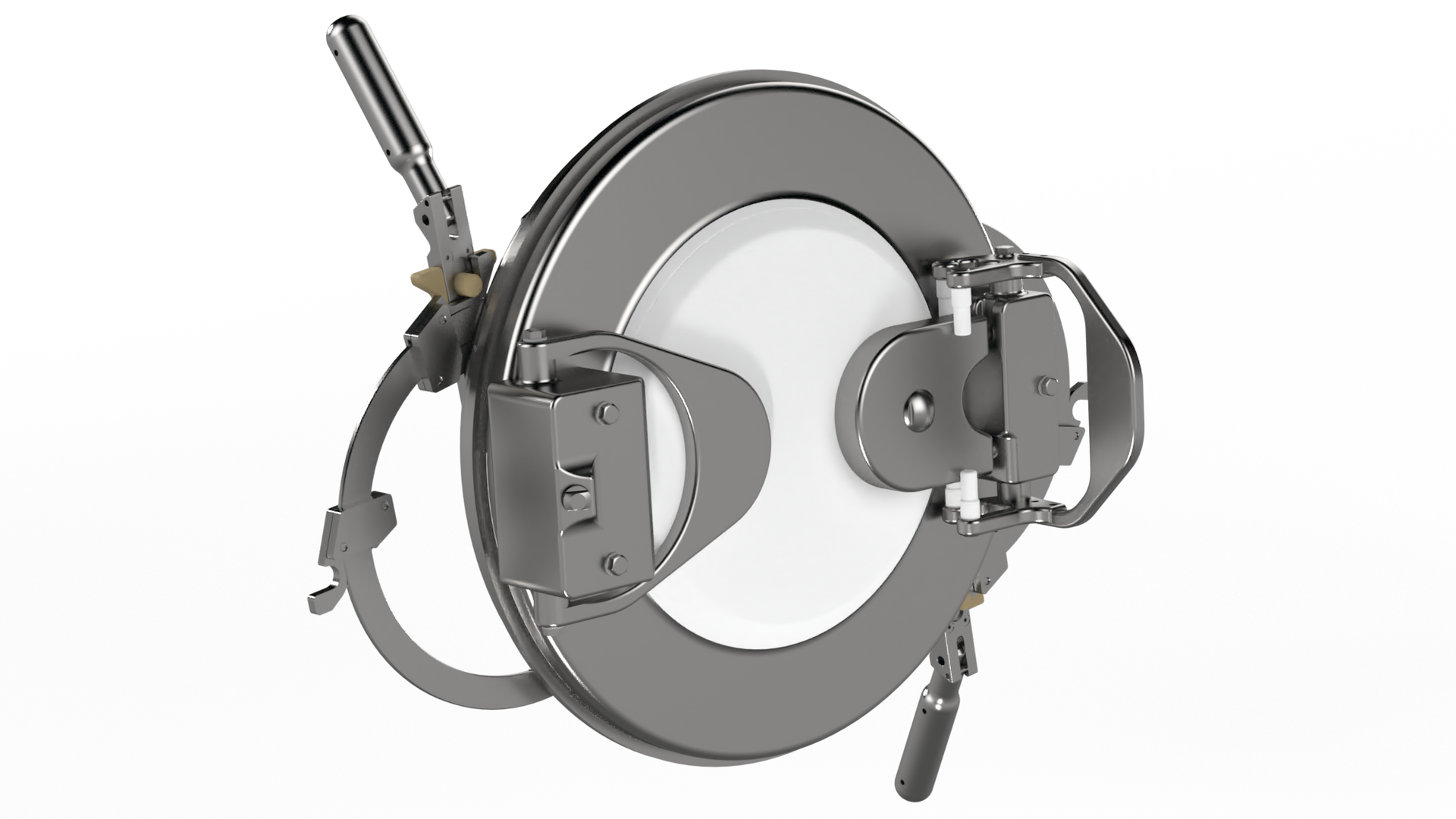

ABC Transfer® alpha part ensures safe and sterile transfer for isolator systems in pharmaceutical filling lines. ABC Transfer® alpha parts  are compatible with beta parts of other brands.

Main features

Innovative designs:

  • Internal and/or External door opening.

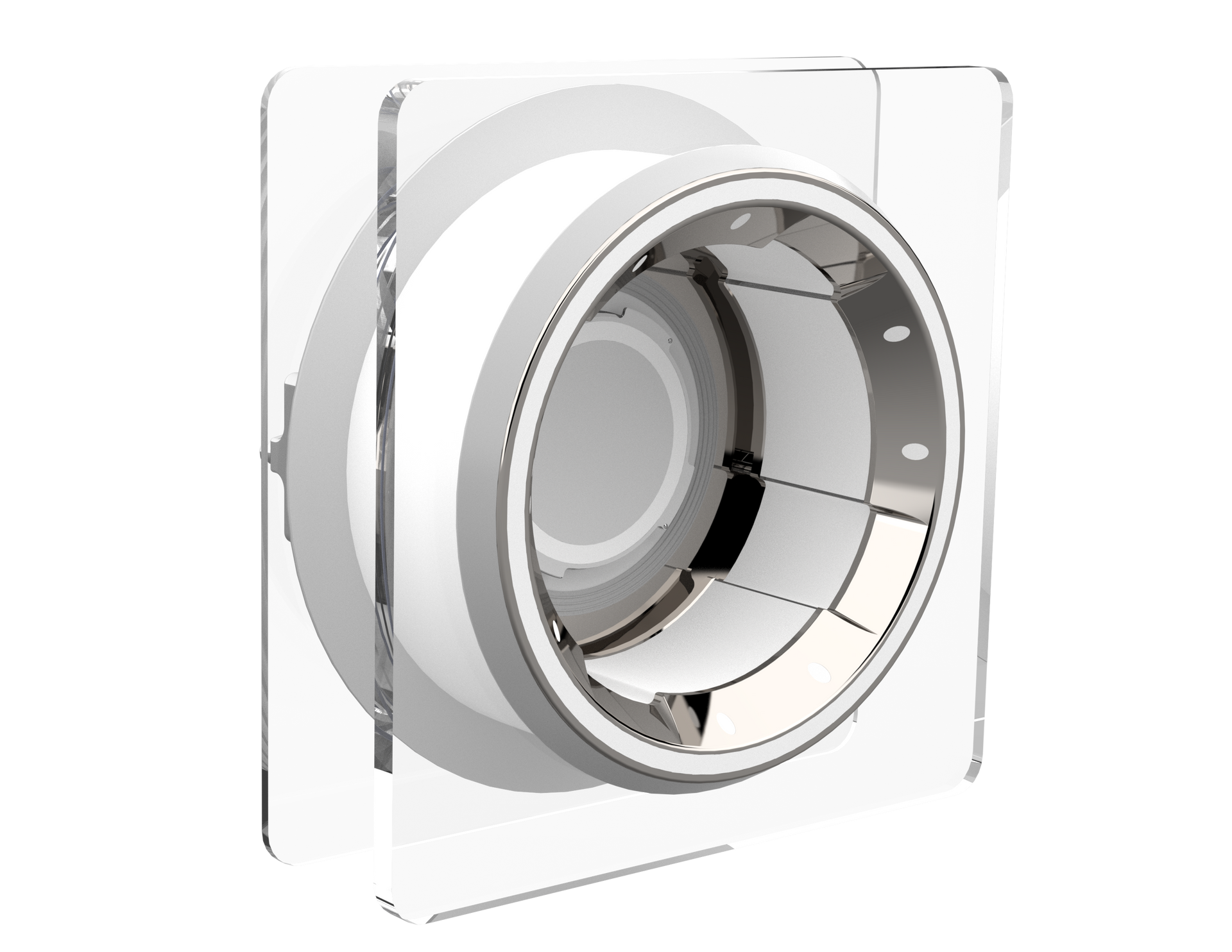

  • Single-wall or Double-walls mounting.
  • Reduced overall weight by 30%.
  • No filters.


EasyGlide™ seal:

  • US FDA 21 CFR  & USP class VI compliant silicone.
  • Reduced area of ring of concern by 70%.
  • Reduced torque and particles generation during connection by rotation.
  • Designed for CIP/SIP, i.e. nor water retention nor hidden area on internal surface.


Key performance:

  • Available in DN 105, 190, 270 mm.
  • Class 1 leak-tightness as per ISO 10648-2.
  • Surface roughness, Ra ≤ 0.5 µm, as per ISO 1302.
  • Rounded shapes and edges for the ease of manual and/or automatic cleaning of external surface.

Options

  • Wide range of handles and/or lever for door opening, focused on ergonomic.
  • External door opening to minimize human intervention and protect your process.
  • Automatic door opening.
