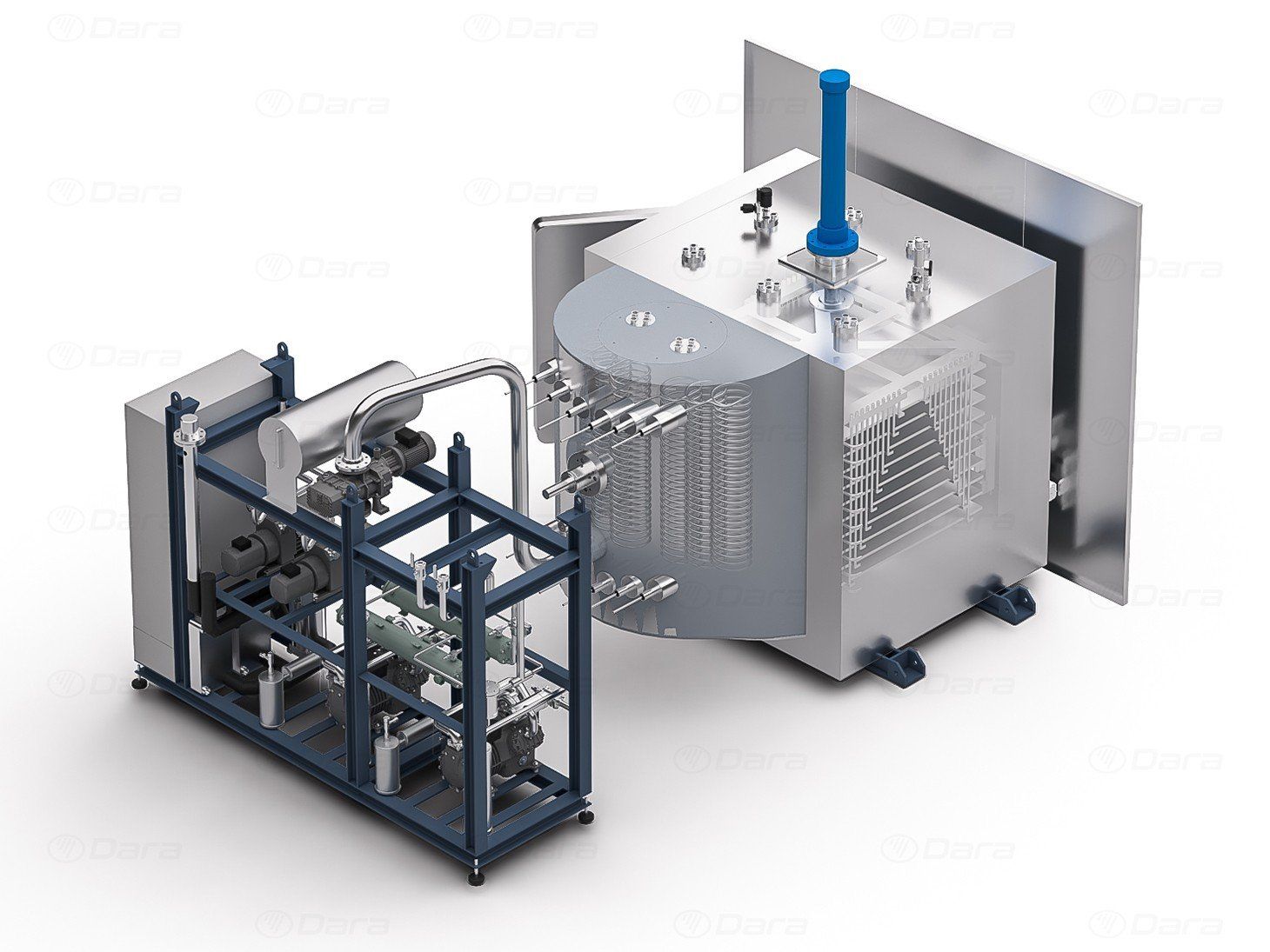

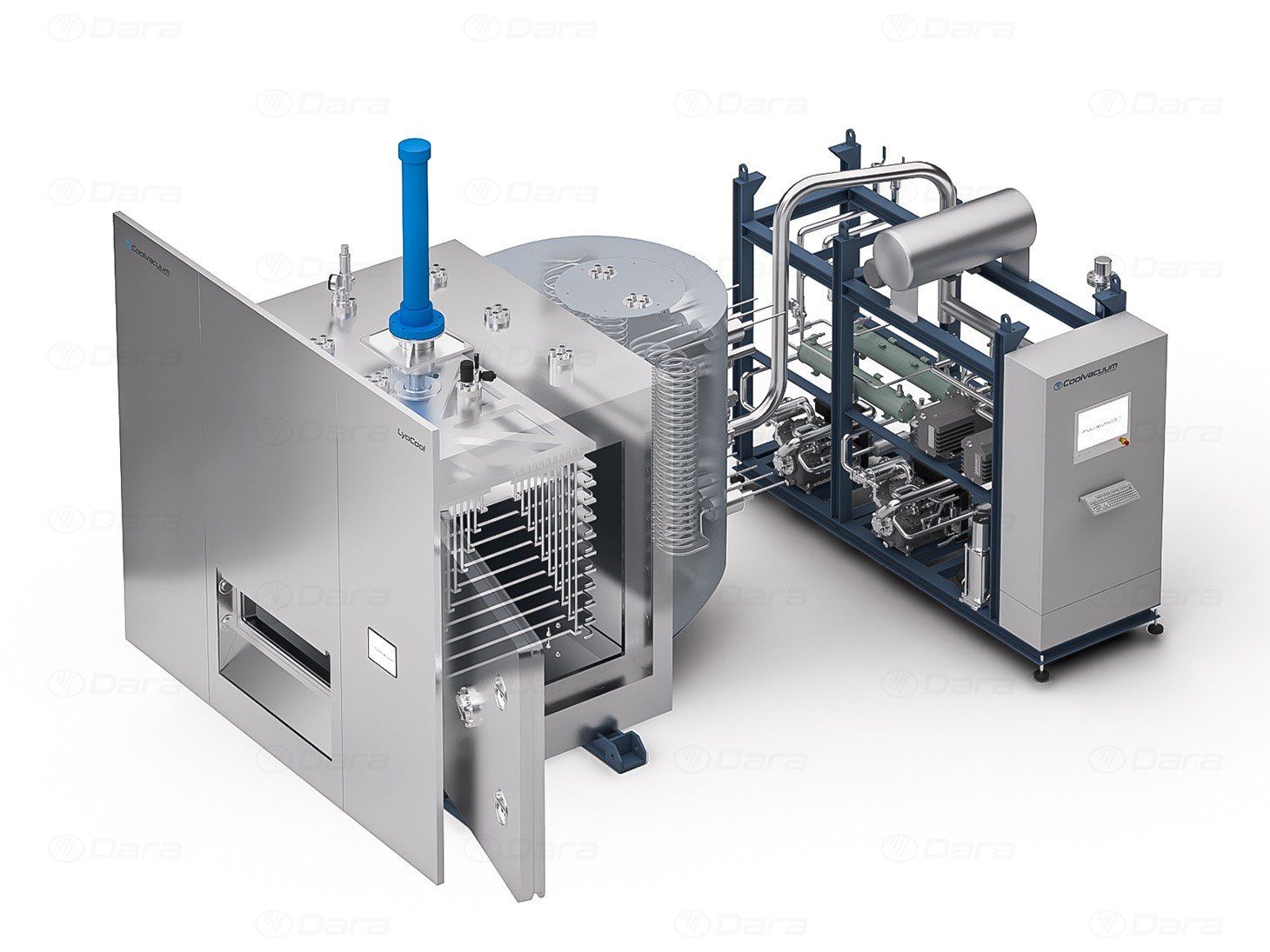

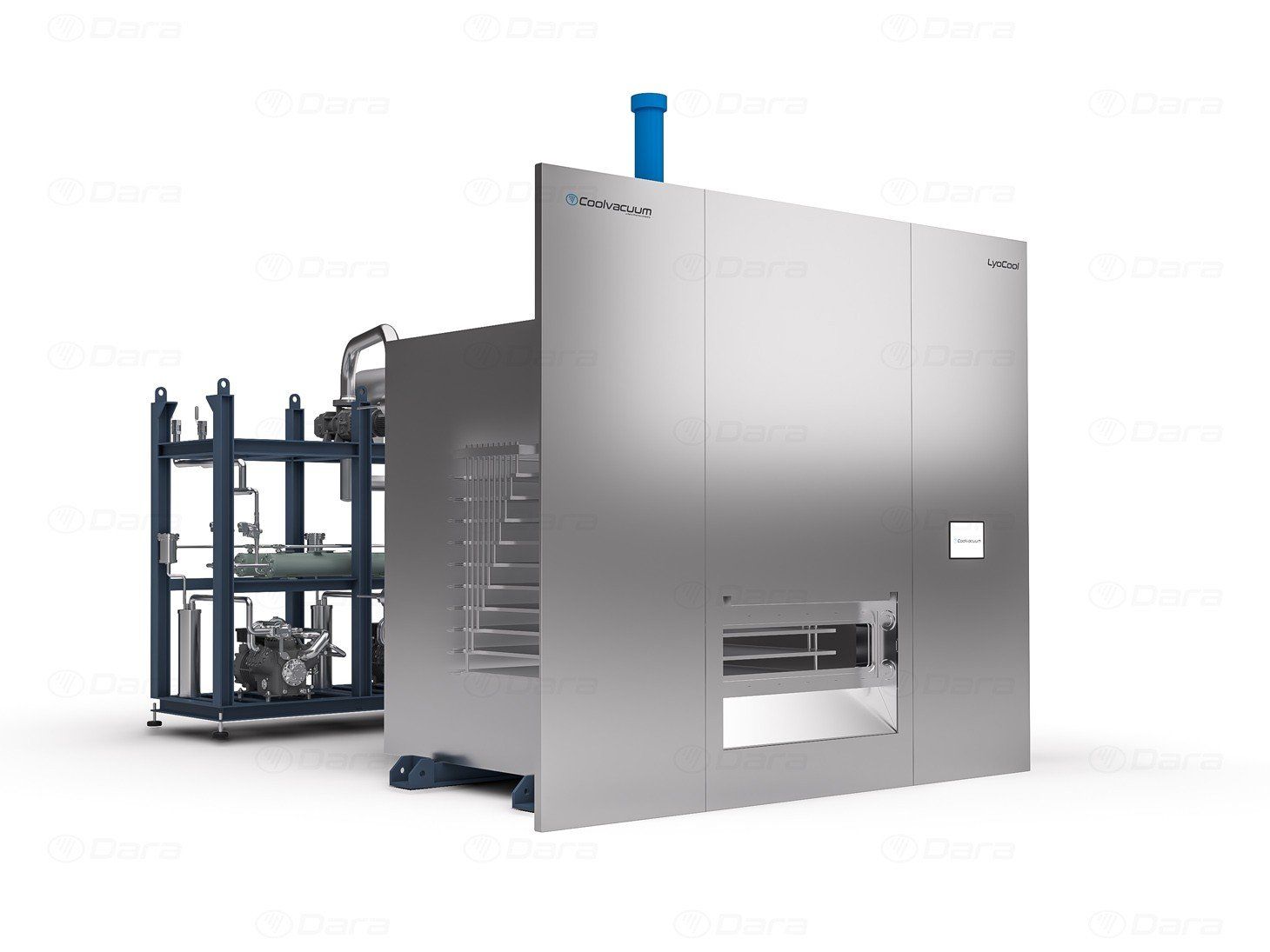

LyoCool

Optimal balance. Maximum flexibility to face new market challenges.

• Single body chamber and condenser.
• Mushroom valve as intermediate valve.
• Compact and modular design.
• Standalone frame for cooling system.
• Standalone frame for vacuum system.
• Chamber dimensions (W x H): 2,100 x 3,300 (≤10.08 m2) / 2,100 x 3,600 (≥11.52 m2) mm.
• Ice condenser temperature: -85˚C.
• Ice condenser capacity: 120 / 150 / 200 / 200 / 250 / 250 kg.
• Shelves temperature range: -60˚C to +85˚C.

• The chamber: Rectangular chamber / Pressureless vessel / Injected foam insulation / Cooling by cold water circuit.
• Connection with condenser: Butterfly valve / Mushroom valve /Bottom shelf closing.
• Ice condenser: Integrated underneath, on the same floor / Integrated on the side, on the same floor / Outside, behind the camera, on the same floor / Outside, under the camera, on another floor.
• Shelves movement: Closing system hydraulic piston / Bellows / Connection with the automatic charging system.
• CIP: Chamber and condenser cleaning system / Recirculation system with heating / Multiple cleaning cycles.
• SIP: PED-EN13445 presssure vessel / ASME pressure vessel / Chamber cool-down after SIP.
• Plant distribution: 1st floor / 2 floors / Passthrough system.
• Additional elements: ATEX (processed with solvents and alcohol) / Cold tray loading / Frozen tray loading / Nucleation technology.
• Refrigeration: Piston compressor / Screw compressor / Liquid nitrogen system / Cascade system / Cooling system without PCA / Compressed air system.
• Door: Full size door / Automatic locking / Slot front door (constant loading level) / Full size sub-door / Cooling by cold water circuit.
• Process sensors: Pirani / Capacitive / Temperature probes (Pt-100 or Thermocouple) / Redundant temperature probes (Pt-100 or Thermocouple) / Wireless temperature monitoring / Full batch traceability software.
• Control systems: Rockwell or Siemens PLC / Integrated HMI / SCADA / Electronic recorder / Electronic Server and Think Client / Cycle optimization technology.
• Filter vent system: Sterilizable / Ports for integrity testing / Secondary venting cycle / Secondary vent filter / Water filter integrity test.
• Vacuum system: Sealed vacuum pumps with blowing system / Redundancy (additional pump) / Dry pumps with blowing system.
