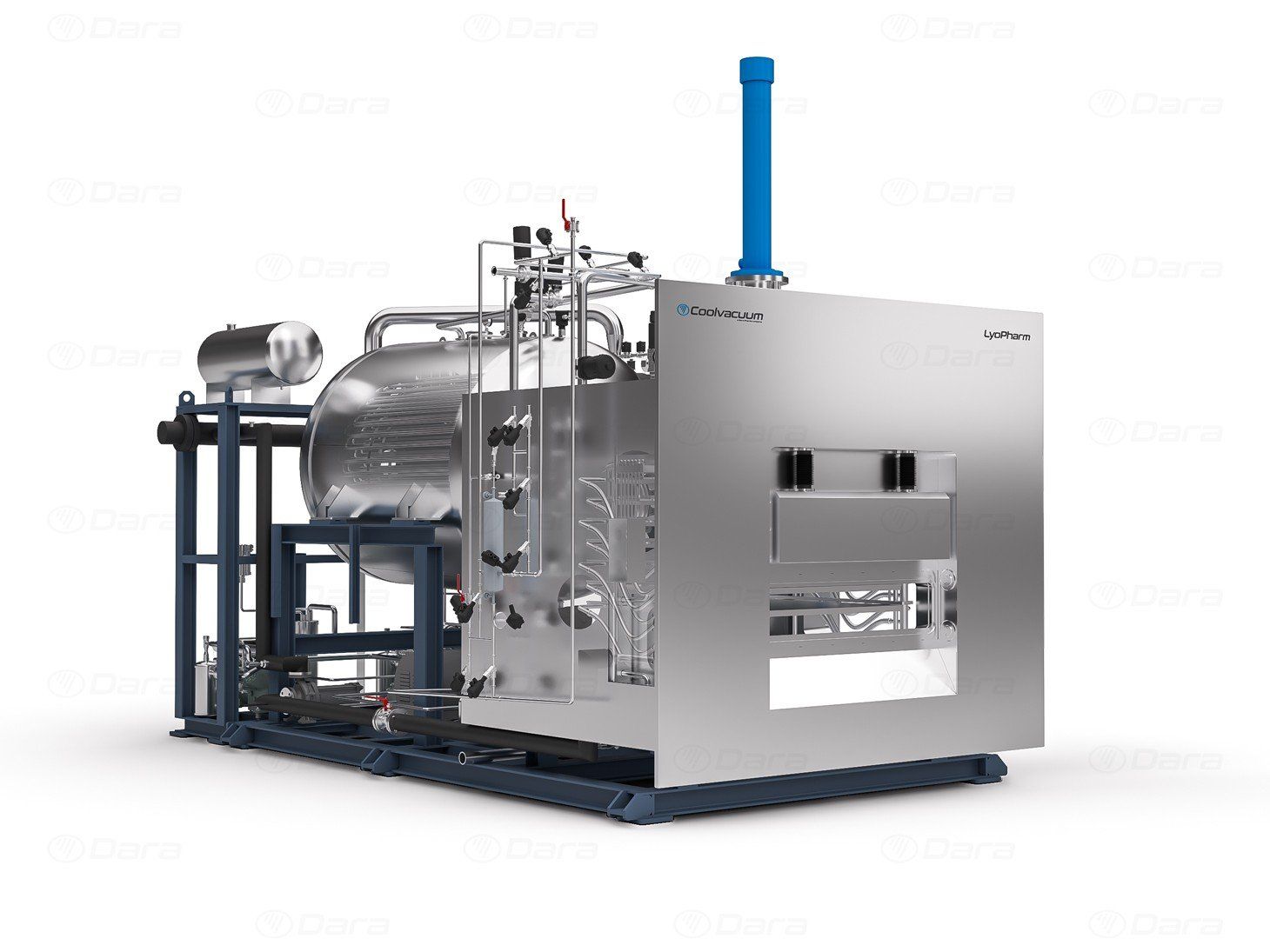

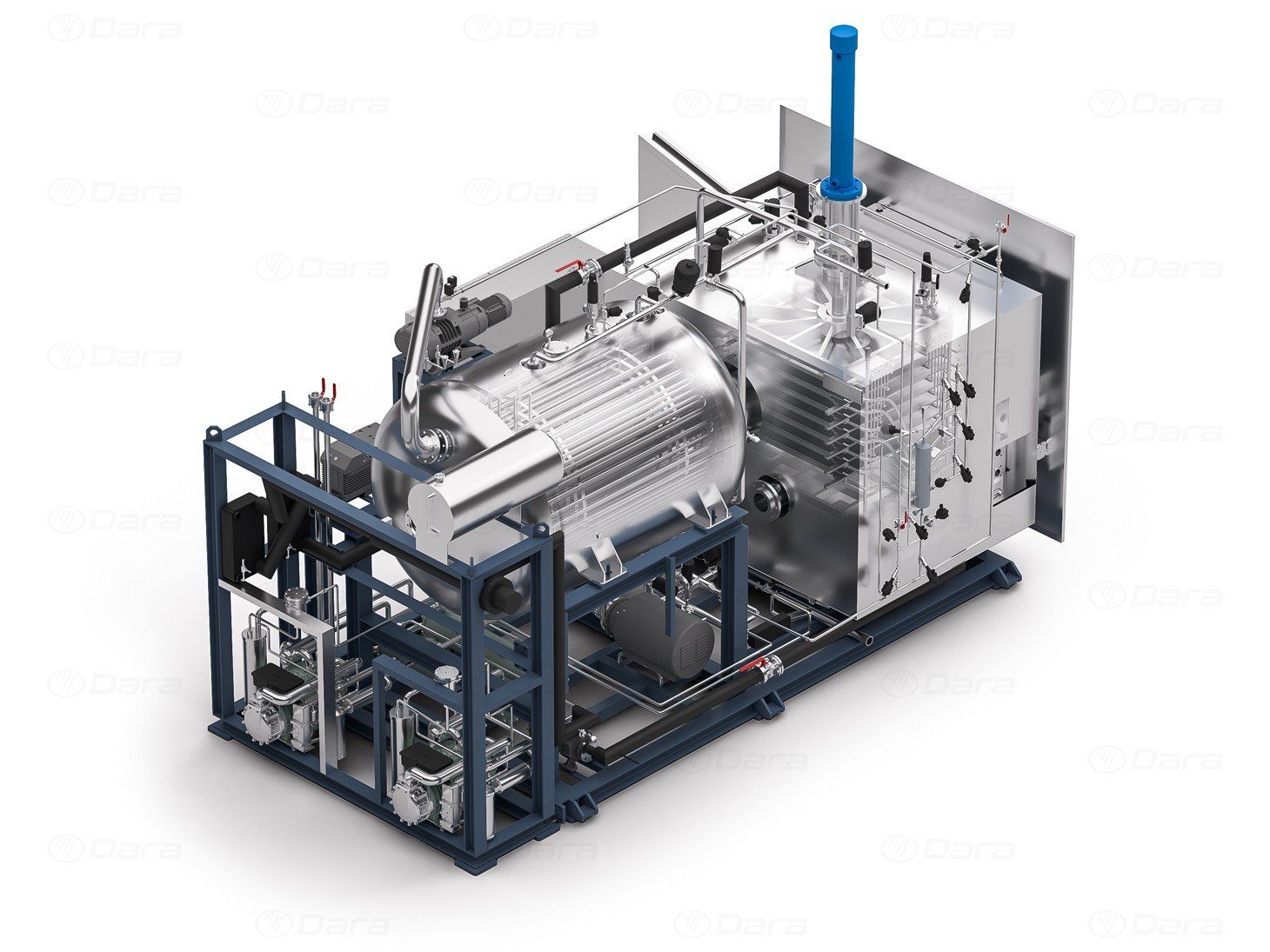

LyoPharm

Freeze dryers within everyone’s reach. Outstanding standarization.

• Standardized configuration of chamber, condenser, cooling and vacuum systems.
• External condenser connected by butterfly valve.
• Side or front maintenance door.
• Chamber dimensions (W x H): 2,000 x 2,200 to 2,500 x 3,600 mm.
• Ice condenser temperature: -85˚C.
• Ice condenser capacity: 40 to 800 kg.
• Shelves temperature range: -60˚C to +85˚C.

• The chamber: Rectangular chamber / Pressureless vessel / Injected foam insulation / Cooling by cold water circuit.
• Connection with condenser: Butterfly valve / Mushroom valve /Bottom shelf closing.
• Ice condenser: Integrated underneath, on the same floor / Integrated on the side, on the same floor / Outside, behind the camera, on the same floor / Outside, under the camera, on another floor.
• Shelves movement: Closing system hydraulic piston / Bellows / Connection with the automatic charging system.
• CIP: Chamber and condenser cleaning system / Recirculation system with heating / Multiple cleaning cycles.
• SIP: PED-EN13445 presssure vessel / ASME pressure vessel / Chamber cool-down after SIP.
• Plant distribution: 1st floor / 2 floors / Passthrough system.
• Additional elements: ATEX (processed with solvents and alcohol) / Cold tray loading / Frozen tray loading / Nucleation technology.
• Refrigeration: Piston compressor / Screw compressor / Liquid nitrogen system / Cascade system / Cooling system without PCA / Compressed air system.
• Door: Full size door / Automatic locking / Slot front door (constant loading level) / Full size sub-door / Cooling by cold water circuit.
• Process sensors: Pirani / Capacitive / Temperature probes (Pt-100 or Thermocouple) / Redundant temperature probes (Pt-100 or Thermocouple) / Wireless temperature monitoring / Full batch traceability software.
• Control systems: Rockwell or Siemens PLC / Integrated HMI / SCADA / Electronic recorder / Electronic Server and Think Client / Cycle optimization technology.
• Filter vent system: Sterilizable / Ports for integrity testing / Secondary venting cycle / Secondary vent filter / Water filter integrity test.
• Vacuum system: Sealed vacuum pumps with blowing system / Redundancy (additional pump) / Dry pumps with blowing system.
