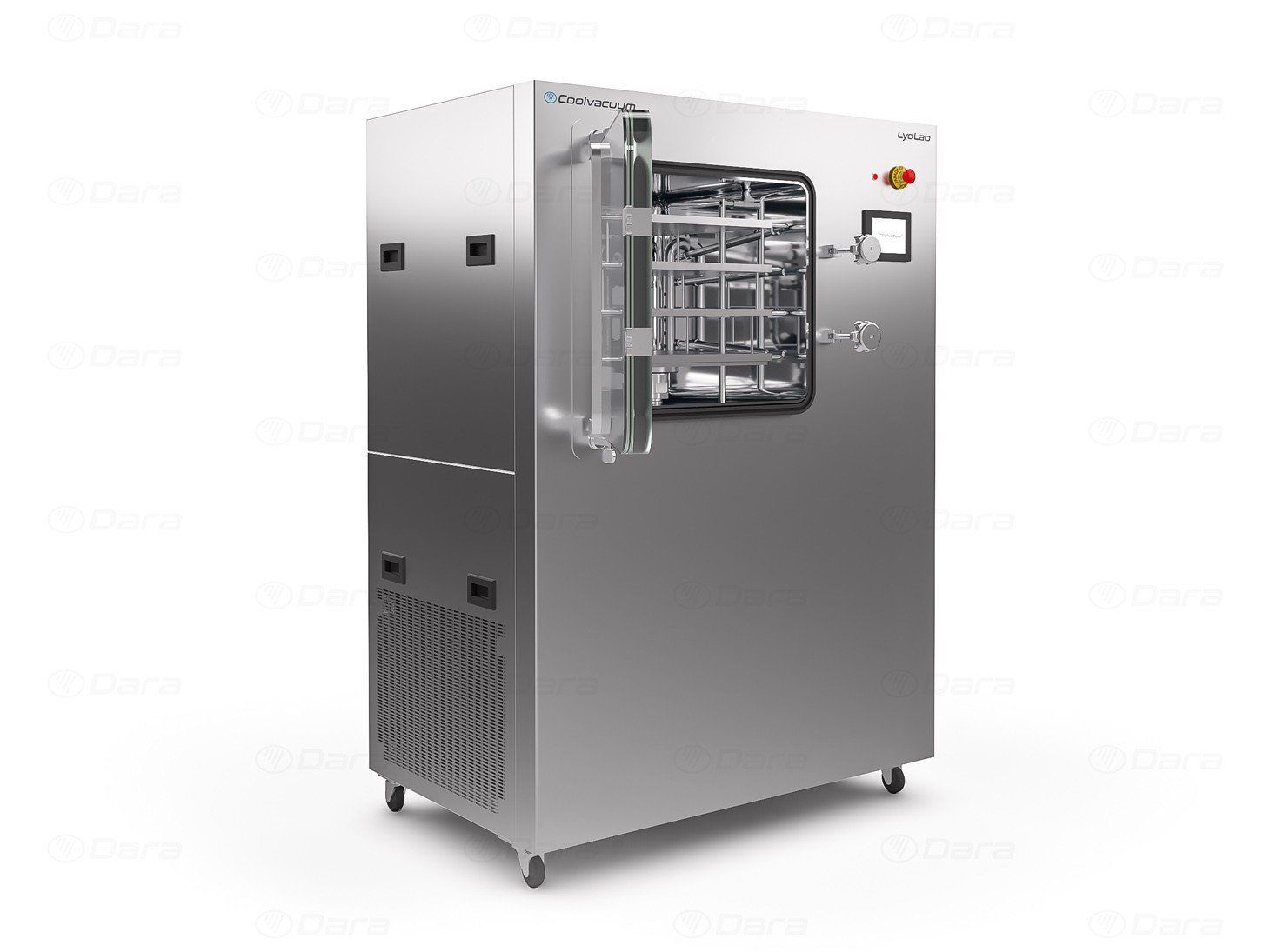

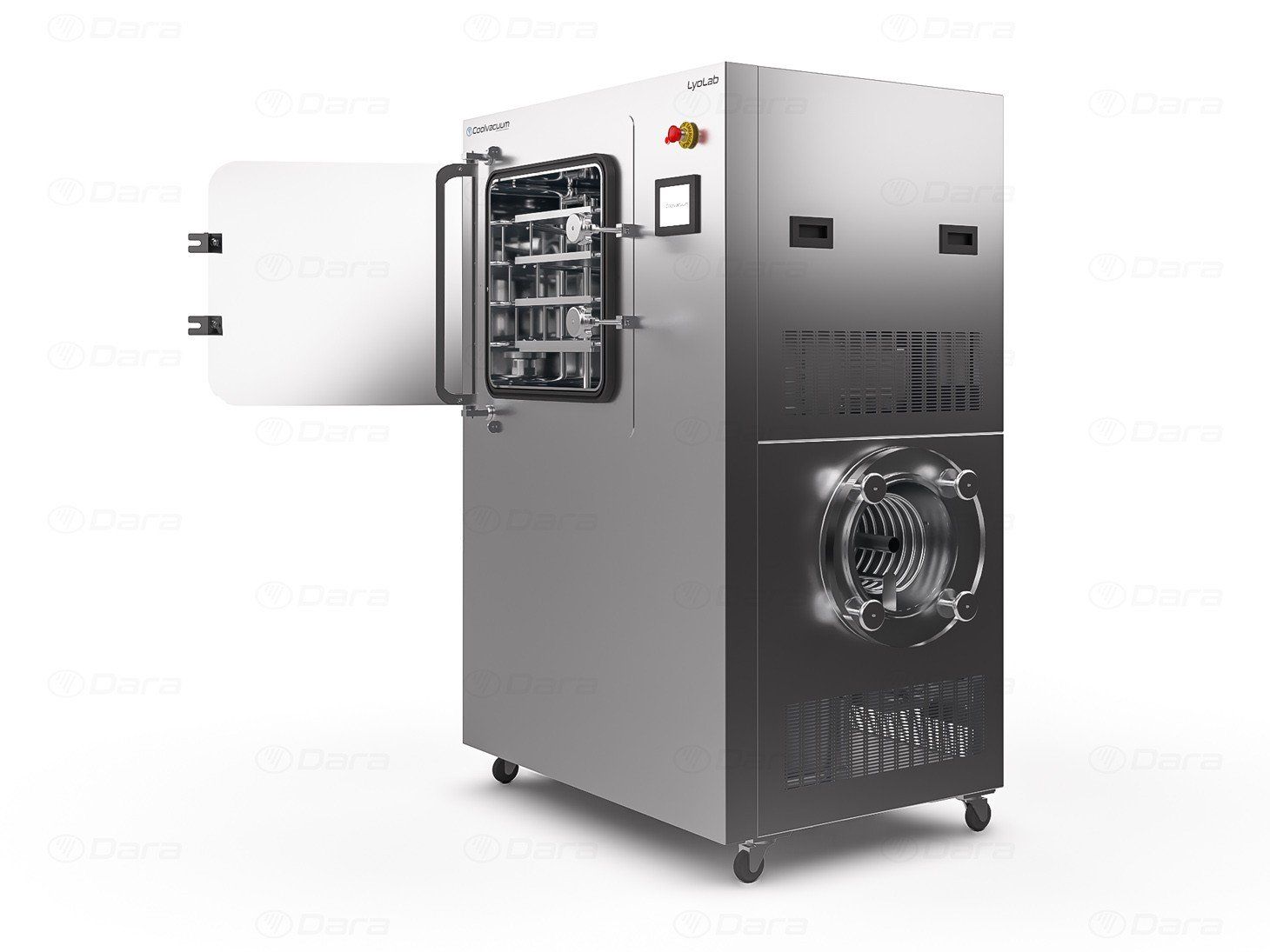

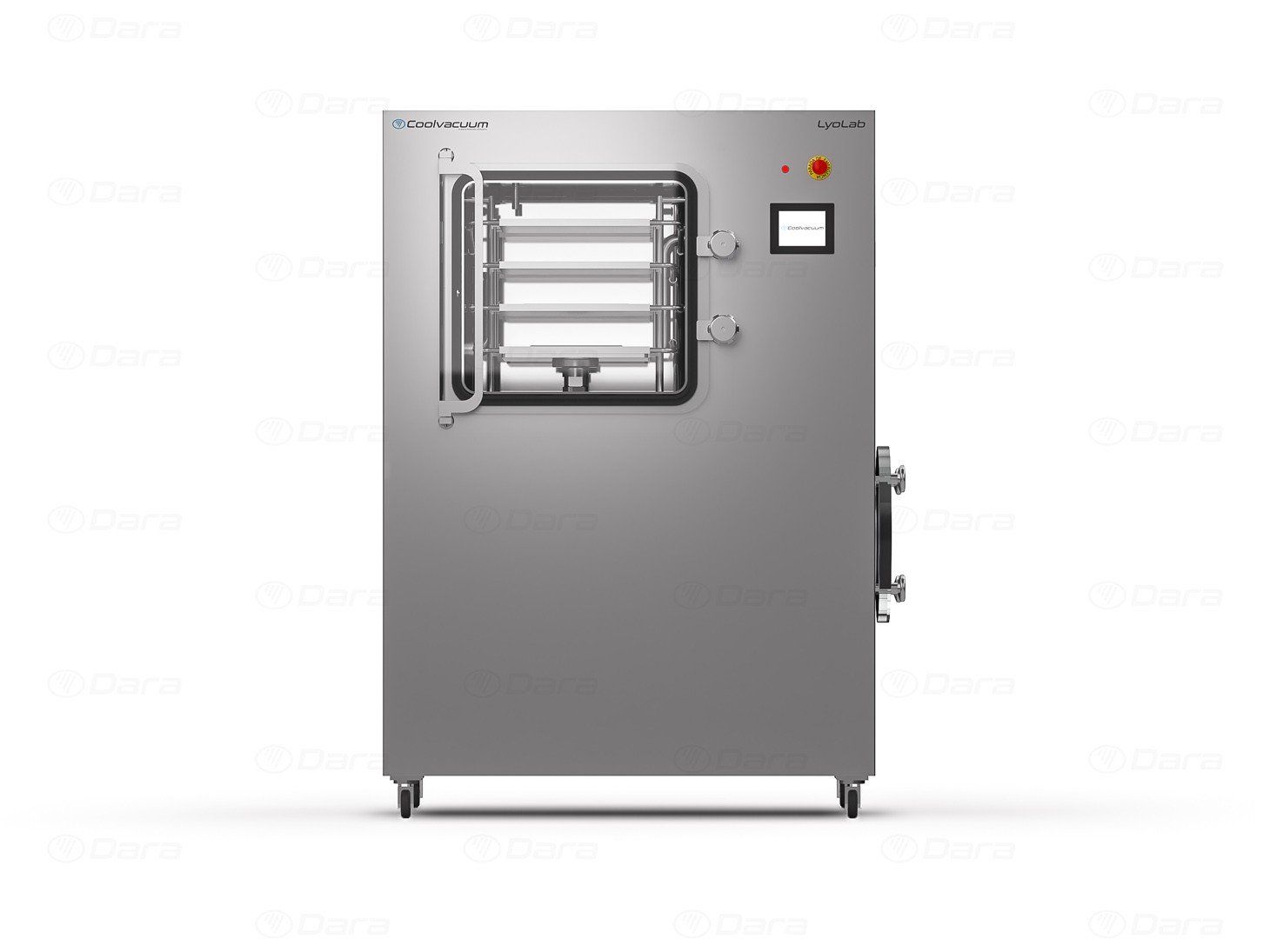

LyoLab
Freeze Dryer
Control and precision in freeze drying was the set goal when developing LyoLab.
Main features
- Chamber materials: AISI 316L stainless steel.
- Ice condenser temperature: -85˚C.
- Ice condenser capacity: 30 kg (15 kg / 24 hours).
- Overall dimensions (W x D x H): 1,300 x 850 x 1,800 mm.
- Shelves temperature range: -60˚C to +80˚C.
- Heating power supply: 1,000 W.
- Vacuum pump output: 20 m3/h.
- Weight: 700 / 1,000 kg.
Options
- Hot gas defrosting system.
- Dara-Lyo Trend software for batch / cycle data logging.
- SCADA software to process production data acquisition in accordance with FDA 21CFR part 11.
- Remote connection.
- Vacuum control for cycle optimization.
- Chamber / condenser isolation valve.
- Organic solvent condenser.
- Gas discharge filter for the vacuum pump.
- Infinite condenser for continuous freeze drying.
